Raft Foundation

A reinforced raft foundation built alongside existing commercial units.

About the project

This raft foundation was built on an occupied commercial site, alongside existing units and the site offices.

Edge formwork was set to line and level and two layers of mesh reinforcement were fixed on spacers, with starter bars marked and capped where the structure continues above the slab. The concrete was then placed and finished.

Work shown

Edge formwork
Two layers of mesh reinforcement
Starter bars
Concrete placed and finished

Project photos

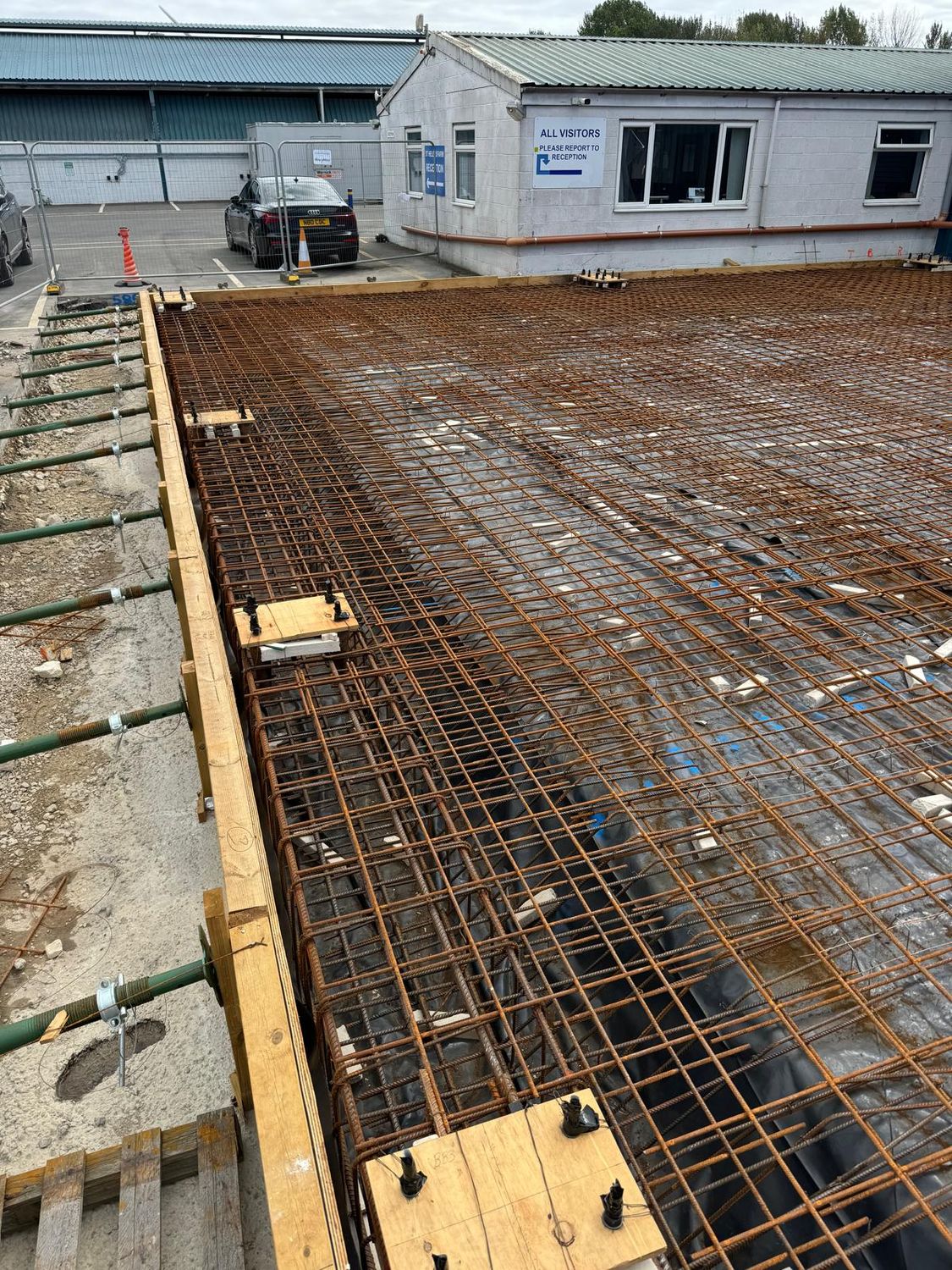

Raft reinforcement and edge shuttering beside the site offices

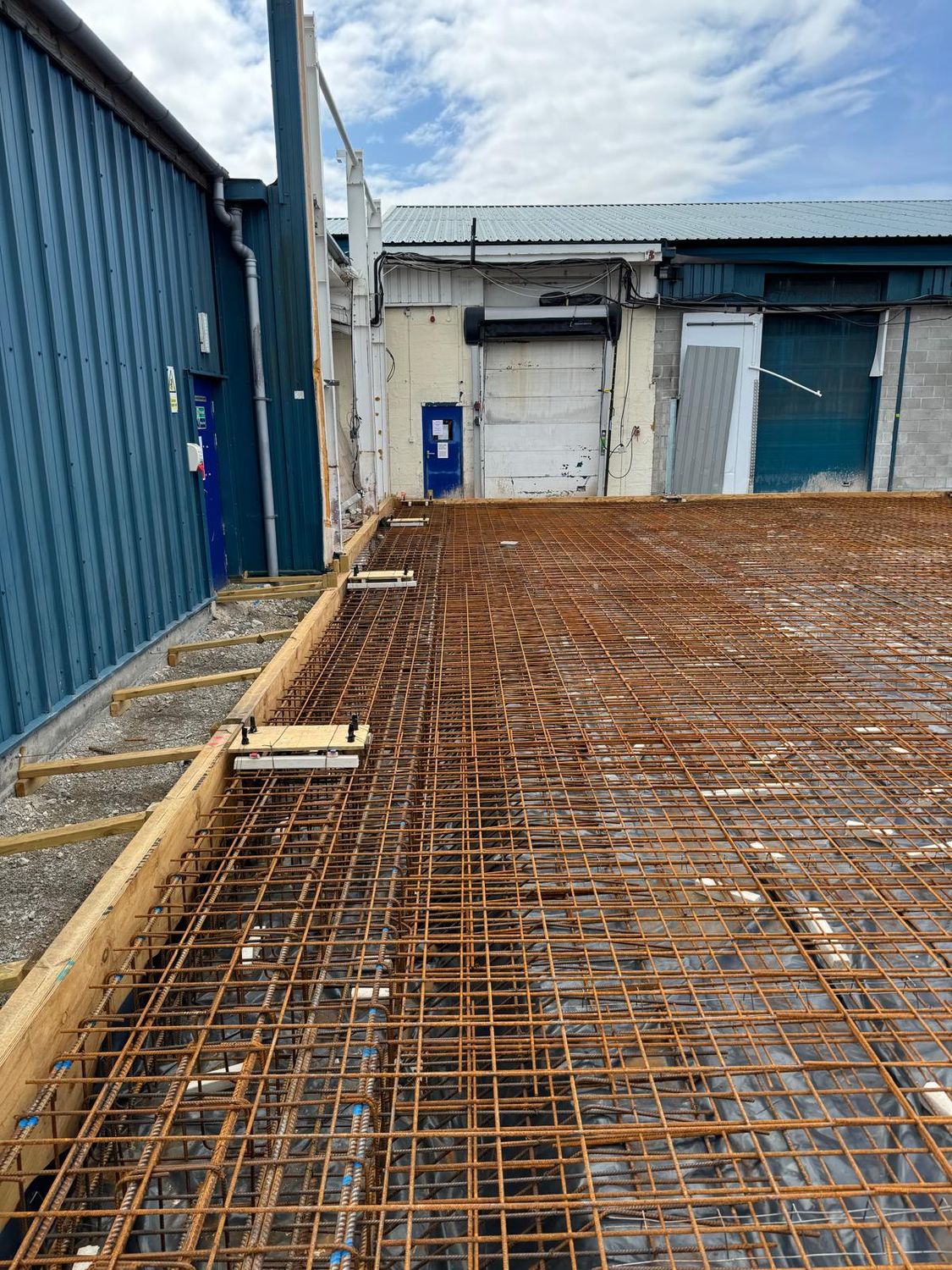

Raft reinforcement running alongside an existing unit

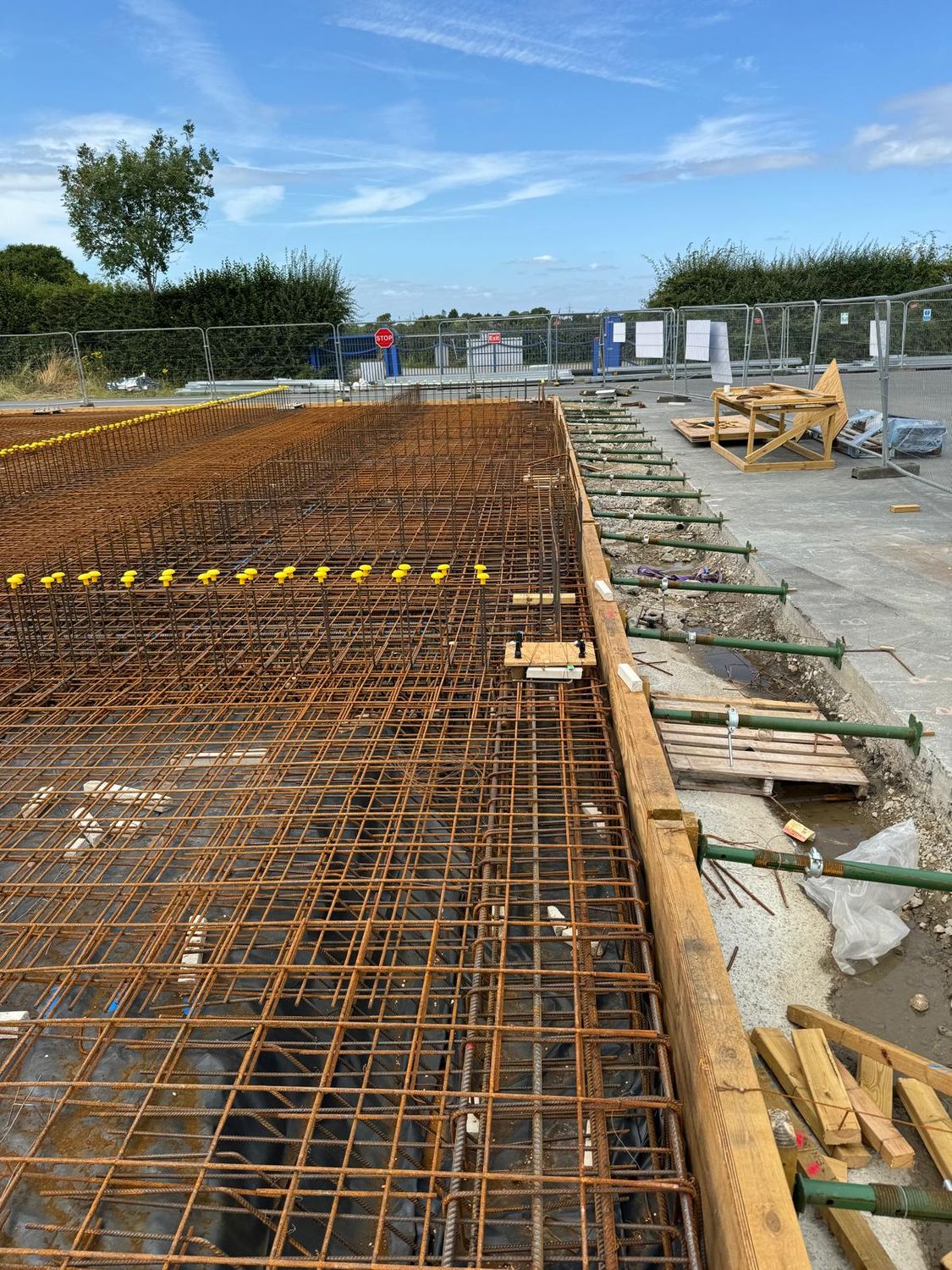

Edge formwork and reinforcement ahead of the pour

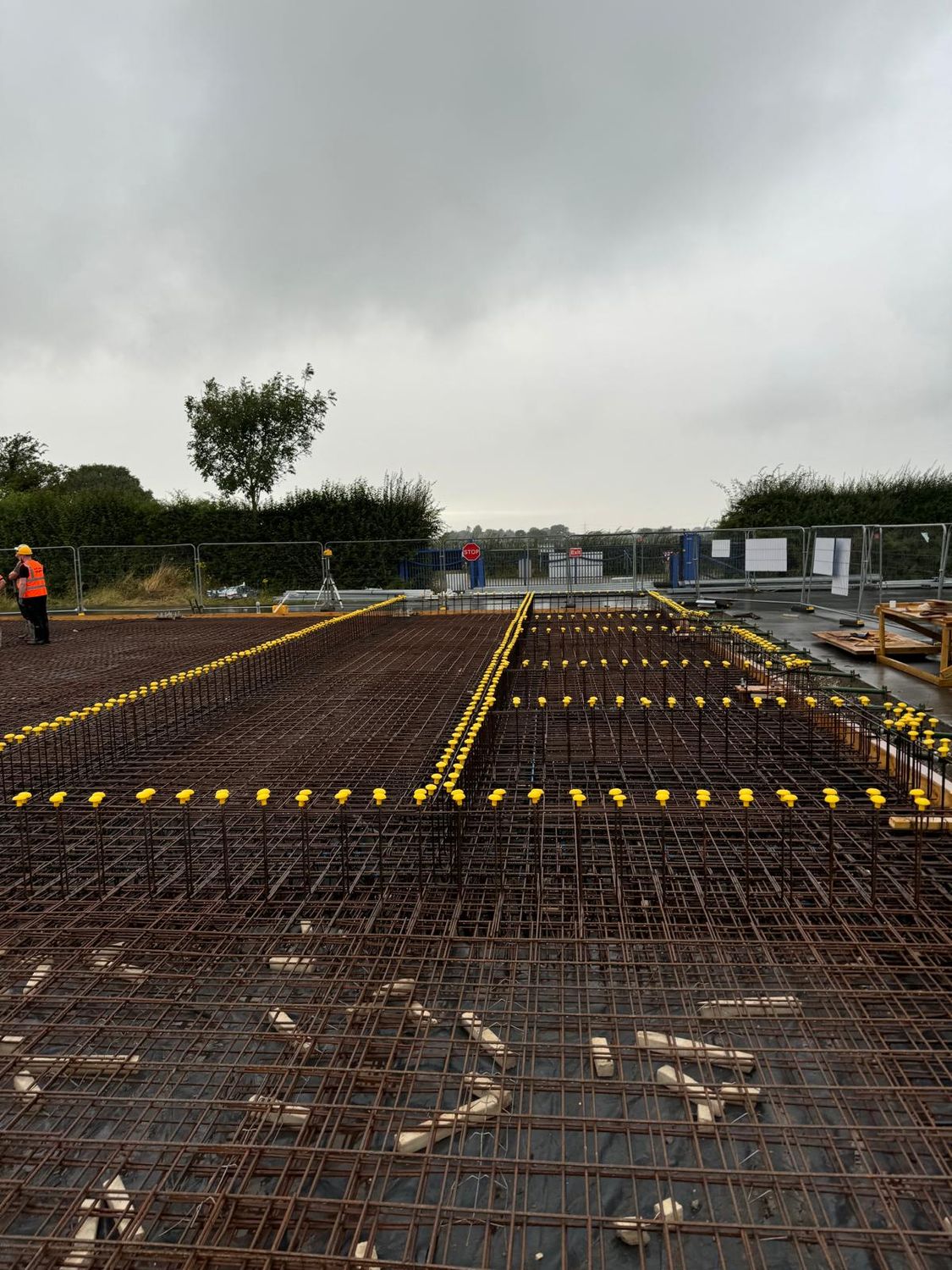

Reinforcement with marked starter bars across the raft

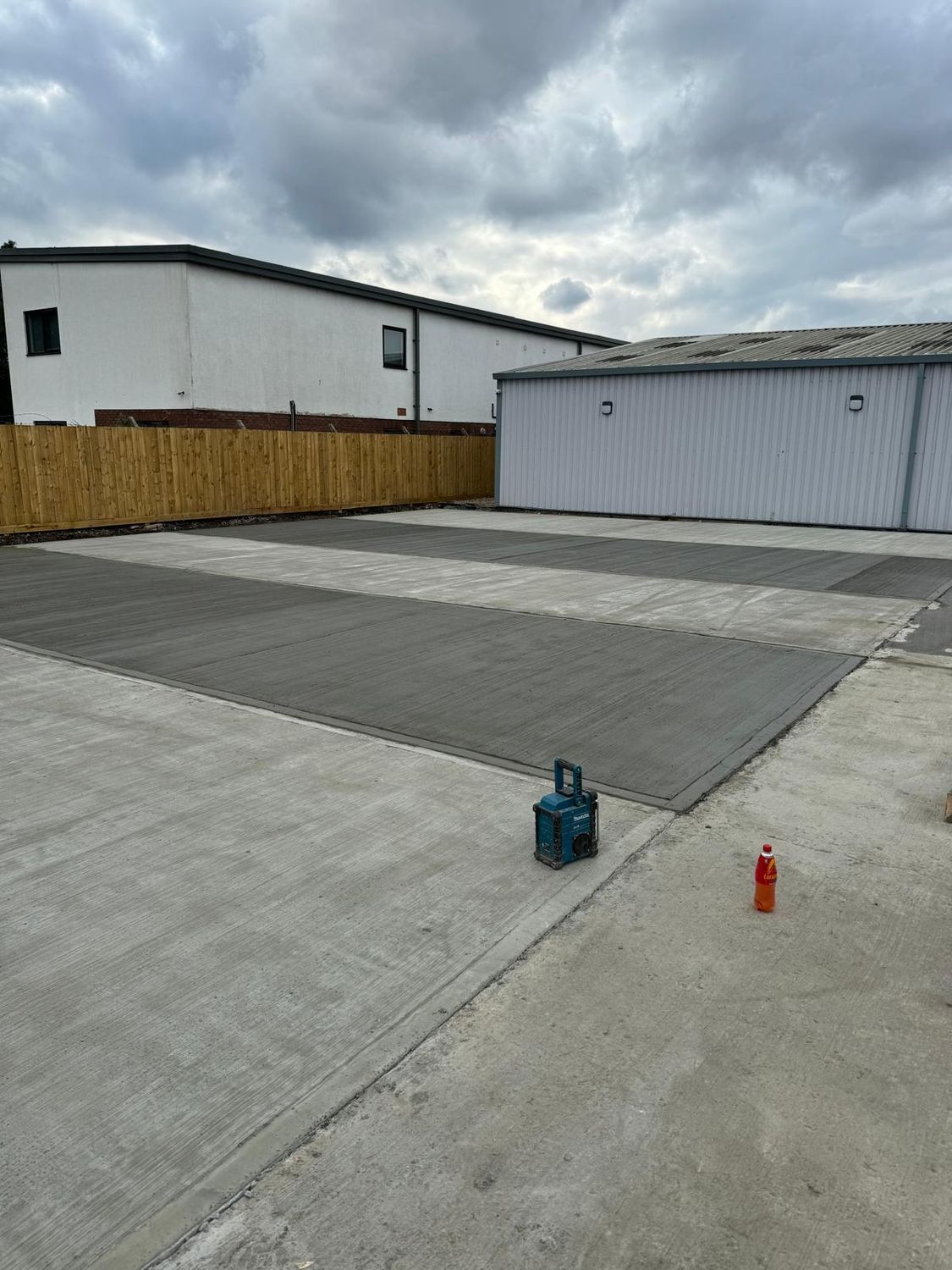

Finished concrete slab with a brushed surface
